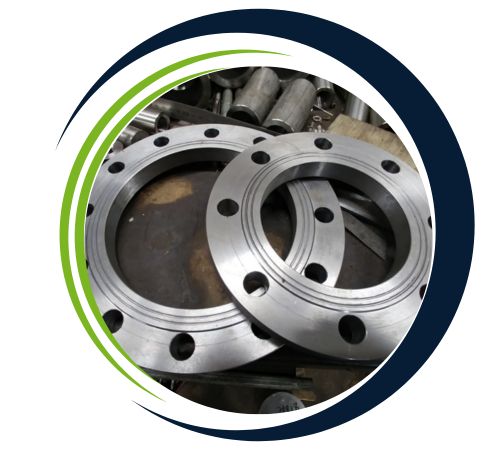

Gugsa Flanges is a well-known manufacturer and vendor of Alloy Steel Forged Flanges located in Addis Ababa, Ethiopia, which are recognized for their great quality and long-term usage. The company, through its modern forging technology and quality measures, offers the flanges which are very sturdy and are intended for such industries that are of a heavy nature. Besides, Gugsa Flanges takes precision as the core value of technology, hence high-quality performance is considered as the main goal under situations of high pressure and temperature. The company, in this way, has been offering the solutions that are dependable and meet global standards compatible with the requirements of Oil and Gas and Petrochemical sectors, Power Generation, and Mechanical Engineering Industries.
Alloy Steel Forged Flanges are made with alloy elements that include chromium, molybdenum, nickel, and manganese, with the major benefits of contributing to the flanges’ strength, toughness, and corrosion resistance. Depending on the grade, these flanges can have a tensile strength that can go from 415 to 690 MPa and a yield strength from 205 to 450 MPa. They also have good hardness, flexibility, and resistance to high temperatures. The forging process changes the grain structure, which in turn changes the mechanical properties of the material, hence better resistance to fatigue is achieved which makes it possible for the material to stay for a long time in a critical industrial system.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Alloy Steel F1, F5, F9, F11, F22, F91 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of Alloy Steel Forged Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
The mainstay of Alloy Steel Forged Flanges application is in industries that are in a need of such durable and high-performance connections in their piping systems. They can be used in oil and gas refineries, chemical processing units, power plants, and marine applications where the equipment is constantly exposed to high temperatures, pressure, and sometimes corrosive substances. The flanges make sure the joints between the pipes and equipment are airtight. Equipment such as pumps, valves, and pressure vessels are some of the examples. Their mechanical resistance to very high stresses and the ability to withstand thermal changes makes them the best option for the equipment that will be using high-pressure steam, gas, or fluid transportation systems. Here, the main issues that are solved are the safety and the reliability aspects of the industrial operations.
| ASME/ANSI B 16.5 | Forged Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Forged Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Forged Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Forged |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
| STANDARD | DIN WERKSTOFF NR. | UNS |
| Alloy F1 | 1.5415 | K12822 |
| ASTM A182 F5 | 1.7362 | K41545 |
| ASTM A182 F9 | 1.7386 | K90941 |
| ASTM A182 F11 | 1.7335 | K11597 |
| ASTM A182 F22 | 1.7380 | K21590 |
| ASTM A182 F91 | 1.4903 | K21590 |
Yes, we offer custom sizes for Alloy Steel Forged Flanges to meet specific project needs. Our team atGugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
