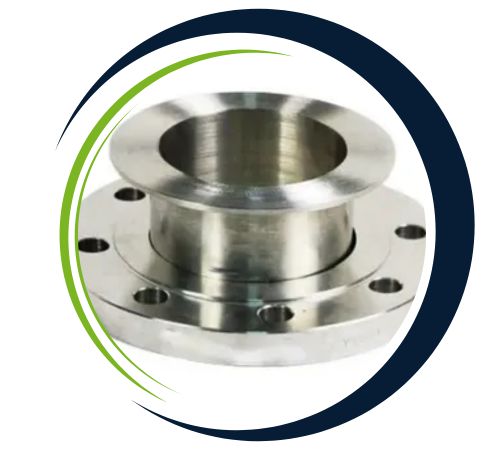

Gugsa Flanges, a top-notch manufacturer and supplier based in Addis Ababa, Ethiopia, specializes in high-quality Titanium Lap Joint Flanges that are built for versatility, durability, and dependable performance in critical piping systems. These flanges boast a clever two-piece design, featuring a stub end and a loose flange, which makes alignment, rotation, and maintenance a breeze. At Gugsa Flanges, the focus is on precision manufacturing, rigorous quality control, and strict adherence to international standards. This ensures that their Titanium Lap Joint Flanges deliver outstanding corrosion resistance, lightweight construction, and impressive mechanical strength, making them perfect for demanding industrial applications in sectors like chemical, marine, oil and gas.
Made from commercially pure titanium or titanium alloys like Grade 2 and Grade 5, these flanges provide excellent corrosion resistance, high tensile strength, and a remarkable strength-to-weight ratio. They also showcase exceptional mechanical properties, including fatigue resistance, stability across a wide temperature range, and long-lasting durability in harsh and corrosive environments. The lap joint design allows the flange to rotate around the stub end, which not only aids in precise alignment but also reduces stress on the pipeline, all while ensuring leak-proof and reliable performance.
| Size in Inch | Size in mm | Outer Diameter | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | Machine Bolt Length | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | G | ||||||||||
| 1/2 | 15 | 90 | 30 | 16 | 22.9 | 60.3 | 11.2 | 3 | 4 | 1/2 | 50 | 55 | 5/8 | M14 | 0.8 |
| 3/4 | 20 | 100 | 38 | 16 | 28.2 | 69.9 | 12.7 | 3 | 4 | 1/2 | 50 | 65 | 5/8 | M14 | 0.9 |
| 1 | 25 | 110 | 49 | 17 | 34.9 | 79.4 | 14.3 | 3 | 4 | 1/2 | 55 | 65 | 5/8 | M14 | 0.9 |
| 1 1/4 | 32 | 115 | 59 | 21 | 43.7 | 88.9 | 15.9 | 5 | 4 | 1/2 | 55 | 70 | 5/8 | M14 | 1.4 |
| 1 1/2 | 40 | 125 | 65 | 22 | 50 | 98.4 | 17.5 | 6 | 4 | 1/2 | 65 | 70 | 5/8 | M14 | 1.4 |
| 2 | 50 | 150 | 78 | 25 | 62.5 | 120.7 | 19.1 | 8 | 4 | 5/8 | 70 | 85 | 3/4 | M16 | 2.3 |
| 2 1/2 | 65 | 180 | 90 | 29 | 75.4 | 139.7 | 22.3 | 8 | 4 | 5/8 | 75 | 90 | 3/4 | M16 | 3.2 |
| 3 | 80 | 190 | 108 | 30 | 91.4 | 152.4 | 23.9 | 10 | 4 | 5/8 | 75 | 90 | 3/4 | M16 | 3.7 |
| 3 1/2 | 90 | 215 | 122 | 32 | 104.1 | 177.8 | 23.9 | 11 | 8 | 5/8 | 75 | 90 | 3/4 | M16 | 5 |
| 4 | 100 | 230 | 135 | 33 | 116.8 | 190.5 | 23.9 | 11 | 8 | 5/8 | 75 | 90 | 3/4 | M16 | 5.9 |
| 5 | 125 | 255 | 164 | 36 | 144.4 | 215.9 | 23.9 | 11 | 8 | 3/4 | 85 | 95 | 7/8 | M20 | 6.8 |
| 6 | 150 | 280 | 192 | 40 | 171.4 | 241.3 | 25.4 | 13 | 8 | 3/4 | 85 | 100 | 7/8 | M20 | 8.6 |
| 8 | 200 | 345 | 246 | 44 | 222.2 | 298.5 | 28.6 | 13 | 8 | 3/4 | 90 | 110 | 7/8 | M20 | 13.7 |
| 10 | 250 | 405 | 305 | 49 | 277.4 | 362 | 30.2 | 13 | 12 | 7/8 | 100 | 115 | 1 | M24 | 19.5 |
| 12 | 300 | 485 | 365 | 56 | 328.2 | 431.8 | 31.8 | 13 | 12 | 7/8 | 100 | 120 | 1 | M24 | 29 |
| 14 | 350 | 535 | 400 | 79 | 360.2 | 476.3 | 35 | 13 | 12 | 1 | 115 | 135 | 1 1/8 | M27 | 41 |
| 16 | 400 | 595 | 457 | 87 | 411.2 | 539.8 | 36.6 | 13 | 16 | 1 | 115 | 135 | 1 1/8 | M27 | 54 |
| 18 | 450 | 635 | 505 | 97 | 462.3 | 577.9 | 39.7 | 13 | 16 | 1 1/8 | 125 | 145 | 1 1/4 | M30 | 59 |
| 20 | 500 | 700 | 559 | 103 | 514.4 | 635 | 42.9 | 13 | 20 | 1 1/8 | 140 | 160 | 1 1/4 | M30 | 75 |
| 24 | 600 | 815 | 663 | 111 | 616 | 749.3 | 47.9 | 13 | 20 | 1 1/4 | 150 | 170 | 1 3/8 |
Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of Titanium Lap Joint Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Titanium Lap Joint Flanges find extensive applications in industries where high strength, corrosion resistance, and light weight are needed. Typical applications are in aerospace, marine, chemical processing, and petrochemical industries. They are best suited for seawater, chemical, or high-temperature exposure environments, like in offshore oil rigs, heat exchangers, and reactors. Titanium lap joint flanges are employed to join pipes, valves, and other equipment, providing leak-proof seals. Their corrosion resistance makes them particularly well-suited to industries that work with aggressive fluids, and their durability and low maintenance level make them a popular choice for applications requiring long life, high performance.
| Element | Titanium | Nitrogen | Carbon | Hydrogen | Iron | Oxygen | Residuals (each) | Residuals (total) |
| % | Balance | 0.03 max | 0.08 max | 0.015 max | 0.30 max | 0.25 max | 0.1 max | 0.4 max |
| 0.2% Proof Stress | Tensile Strength | Elongation | |
| MPa | MPa | % | |
| Annealed | 275-450 | 345 | 20 |
Yes, we offer custom sizes for Titanium Lap Joint Flange to meet specific project needs. Our team atGugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.
Titanium Lap Joint Flanges are a go-to choice in industries that demand corrosion-resistant, robust, and easy-to-maintain flange connections. They’re particularly well-suited for chemical processing plants, petrochemical and oil and gas pipelines, offshore and marine applications, as well as high-performance heat exchangers. Additionally, these flanges are ideal for pharmaceutical, food processing, and desalination systems where hygiene, corrosion resistance, and operational efficiency are paramount. Their ability to rotate simplifies both installation and maintenance, ensuring long-term reliability and leak-proof operation in even the most challenging industrial environments.
