Nestled in the heart of Addis Ababa, Gugsa Flanges stands as a trusted partner for industries across Ethiopia and beyond, specializing in the provision of robust and reliable piping components. Our expertise shines particularly in the supply of high-performance Copper Nickel Blind Flanges, engineered to meet the rigorous demands of challenging environments. We understand that your projects require not just products, but dependable solutions, and that is the commitment we build into every flange that carries our name.

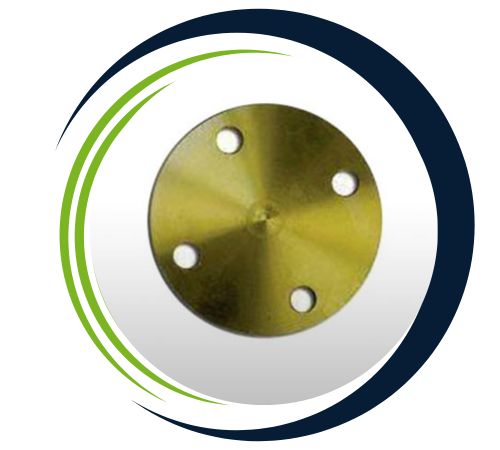

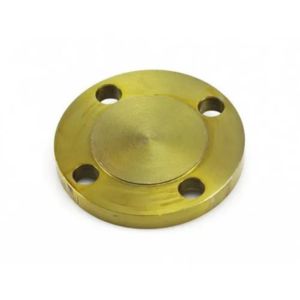

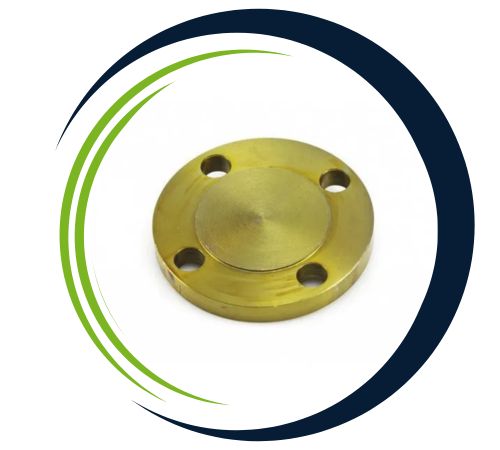

These blind flanges are crafted from copper-nickel alloys, a material choice celebrated for its exceptional resistance to corrosion, especially in saltwater and marine atmospheres. This composition grants the flanges superior durability and a long service life, while also offering excellent mechanical properties including high tensile strength and good thermal conductivity. Their inherent ability to withstand biofouling makes them a technically sound and economically smart selection for systems where longevity and minimal maintenance are absolutely crucial.

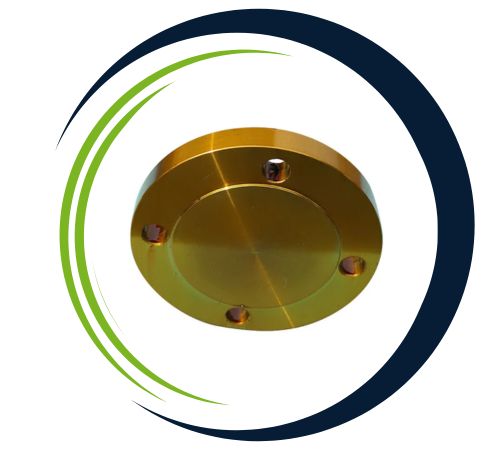

| Specification | ASTM B151 / ASME SB151 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JIS90/10220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |

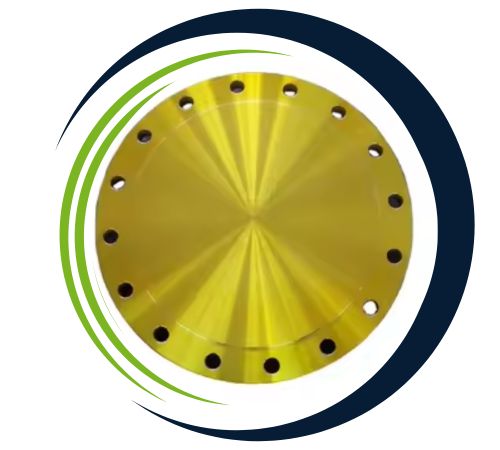

| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |

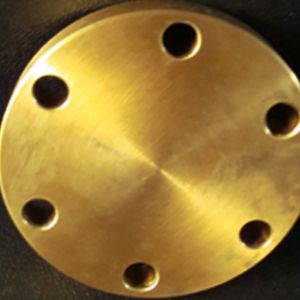

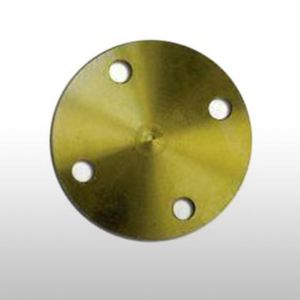

| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B151 70/30 Copper Nickel Flanges |
| Grades | Copper Nickel 70/30, 90/10 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of Copper Nickel Blind Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

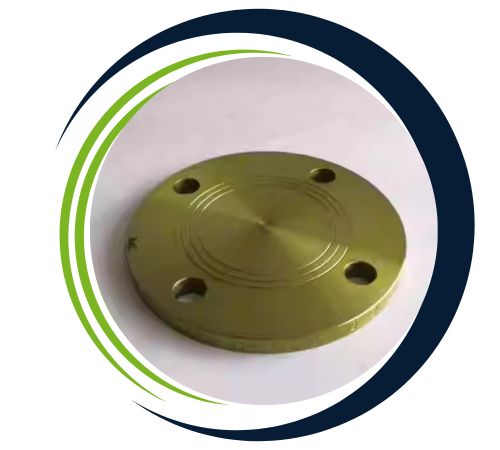

Copper-nickel blind flanges find widespread applications in marine and offshore use because they possess very high resistance to seawater corrosion and bio-odor They find application in the field of pharmaceuticals, desalination plants and power plants under normal den in the. Blind flanges prevent water from passing through when required by closing the pipe or container end. The copper-nickel alloy offers cracking, pitting and stress cracking resistance, making it ideal for high temperature and high pressure.
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Cupro Nickel 90/10 | 2.0872 | C70600 |
| Cupro Nickel 70/30 | 2.0882 | C71500 |

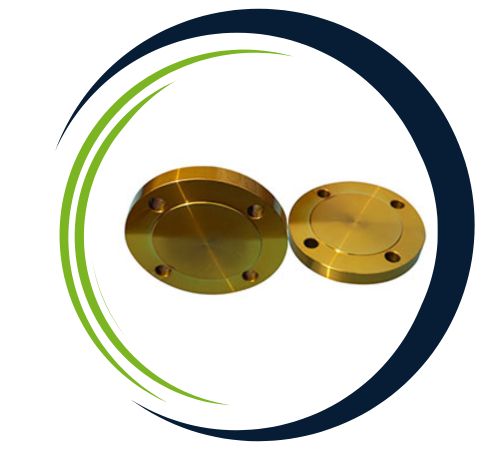

| ASME/ANSI B 16.5 | Blind Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Blind Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Copper Nickel Blind Flanges to meet specific project needs. Our team at Gugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
