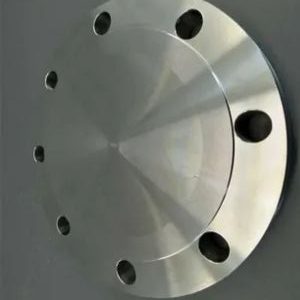

Located in the bustling industrial heart of Addis Ababa, Gugsa Flanges stands as a trusted local source for high-quality pipeline components. We take pride in manufacturing and supplying robust DIN 2527 PN10 Blind Flanges, engineered to meet the rigorous demands of various projects across Ethiopia. Our commitment is to provide reliable solutions that ensure the integrity and safety of your piping systems, helping to keep industries flowing smoothly and efficiently with products you can count on right here at home.
Crafted for strength and longevity, these flanges are typically produced from durable carbon steel. Their composition ensures excellent resistance to pressure and environmental stress, fully complying with the DIN 2527 standard for a pressure rating of PN10. This means they are mechanically suited to handle significant operating pressures, providing a dependable, permanent seal at the end of a pipeline or at any point where future expansion might be needed.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
| Rated Diameter | Flange | Screws | Weight (7,85 Kg/dm3) | ||||
|---|---|---|---|---|---|---|---|
| D | b | k | Number | Thread | d2 | Shape B | |
| Kg | |||||||
| 15 | 95 | 14 | 65 | 4 | M 12 | 14 | 0,72 |
| 20 | 105 | 16 | 75 | 1,01 | |||
| 25 | 115 | 16 | 85 | 1,23 | |||
| 32 | 140 | 16 | 100 | M 16 | 18 | 1,8 | |
| 40 | 150 | 16 | 110 | 2,09 | |||
| 50 | 165 | 18 | 125 | 2,88 | |||
| 65 | 185 | 18 | 145 | 3,66 | |||
| 80 | 200 | 20 | 160 | 4,77 | |||
| 100 | 220 | 20 | 180 | 8 | 5,65 | ||
| 125 | 250 | 22 | 210 | 8,42 | |||
| 150 | 285 | 22 | 240 | M 20 | 22 | 10,4 | |
| 200 | 340 | 24 | 295 | 16,5 | |||
| 250 | 395 | 26 | 350 | 12 | 24 | ||
| 300 | 445 | 26 | 400 | 30,9 | |||
| 350 | 505 | 26 | 460 | 16 | 40,6 | ||
| 400 | 565 | 26 | 515 | M 24 | 26 | 49,4 | |
| 500 | 670 | 28 | 620 | 20 | 75 | ||
Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of DIN 2527 PN10 Blind Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
DIN 2527 PN10 Blind Flanges are used to securely close off pipeline ends, valves, and equipment openings in low to moderate-pressure systems. They are commonly employed in industries such as oil and gas, petrochemical, water treatment, and chemical processing, where they serve to isolate sections of piping for maintenance, inspection, or repair without causing system-wide disruptions. These flanges ensure leak-proof sealing, which helps maintain system integrity and prevent contamination. Their durability and ease of use make them essential components in managing pipeline and equipment access points.
Yes, we offer custom sizes for DIN 2527 PN10 Blind Flanges to meet specific project needs. Our team atGugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| DIN 2527 PN10 BLRF Flange Stockist in Ethiopia | Raised Faced DIN 2527 PN10 Slip-On flanges Dealer in Ethiopia |
| Nickel Alloy DIN 2527 PN10 Blind Flange | Mild Steel DIN 2527 PN10 Blind Flange |
| Stainless Steel DIN 2527 PN10 Blind Flange | ASTM B564 Raised Faced DIN 2527 PN10 Blind Flanges |
| DIN 2527 PN10 Blind FF Flange Supplier | Suppliers of DIN 2527 PN10 Blind Flange |
| DIN 2527 PN10 Blind Flange Dimensions | Raised Face DIN 2527 PN10 Blind Flange Manufacturer |
| 18 inch DIN 2527 PN10 Carbon Steel Blind Flange | DIN 2527 PN10 Blind Flange Dimensions in mm |
| Alloy Steel DIN 2527 PN10 Blind Flanges | Copper Nickel DIN 2527 PN10 Blind Flanges at Best Price |
| 8 Inch DIN 2527 PN10 Blind Pipe Flanges | DIN 2527 PN10 Blind Flanges Stockist |
| DIN 2527 PN10 BLRF Flange Exporter | DIN 2527 PN10 Blind Flange Pressure Ratings |
| Raised Face DIN 2527 PN10 Blind Plate Flanges | Titanium DIN 2527 PN10 Blind Flanges |
| DIN 2527 PN10 Large Diameter Blind Flange | 30 Inch DIN 2527 PN10 Blind Pipe Flange Dimensions |
| 30 inch DIN 2527 PN10 Blind Flange Dealer | Raised Face DIN 2527 PN10 Blind Flanges Manufacturer |
| 4 inch Stainless Steel DIN 2527 PN10 Blind Flange | DIN 2527 PN10 Blind RF Flanges Stockholder |
| DIN 2527 PN10 Blind Flanges Supplier in Addis Ababa | MS DIN 2527 PN10 Blind Flange |
| ASME SA105N Raised Faced DIN 2527 PN10 Blind Flanges | 18 inch Carbon Steel DIN 2527 PN10 Blind Flange |
| DIN 2527 PN10 Blind Flange Manufacturer | Flat Face DIN 2527 PN10 Blind Flange Manufacturer |
| DIN 2527 PN10 BLRF Flanges Distributor in Adama | Flat Face DIN 2527 PN10 Blind Flanges Exporter |
| German Standard DIN 2527 PN10 Blind Flanges | DIN 2527 PN10 Blind Flange Supplier in Ethiopia |
| Carbon Steel DIN 2527 PN10 Blind Flange | DIN 2527 PN10 Blind RF Flange Supplier |
| Carbon Steel Raised Face DIN 2527 PN10 Blind Flange Stockist | Duplex Steel DIN 2527 PN10 BLRF Flanges Supplier in Addis Ababa |
| DIN 2527 PN10 Blind Pipe Flanges Supplier in Dire Dawa | Duplex Steel DIN 2527 PN10 Blind Flanges |
| DIN 2527 PN10 BLRF Flanges Supplier in Mek’ele | Alloy Steel DIN 2527 PN10 Blind Flanges Manufacturer in Ethiopia |
| DIN 2527 PN10 Blind Pipe Flanges Wholesaler | DIN 2527 PN10 BLRF Flanges Supplier |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
