Nestled in the heart of Addis Ababa, Gugsa Flanges stands as a trusted partner for industry, proudly supplying robust solutions for demanding environments. We specialize in providing high-performance Super Duplex Steel Flanges of the S32750 grade, engineered to withstand the most aggressive conditions. Our commitment is to deliver not just a product, but reliability and durability that supports the ambitious growth and critical infrastructure projects driving Ethiopia and the broader region forward, ensuring every connection we provide is built to last.
The S32750 grade is distinguished by its exceptional composition, offering a high chromium, molybdenum, and nitrogen content that creates a superior corrosion resistance. This balanced chemistry gives these flanges outstanding mechanical strength and impressive toughness, even under extreme pressures and temperatures. They are particularly resistant to stress corrosion cracking, making them far more resilient than standard stainless steels. This combination of properties ensures a long service life with minimal maintenance, providing outstanding value for your most challenging applications.
Specifications : ASTM A182 / ASME SA182
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Size : 1/8″ NB TO 24″ NB
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

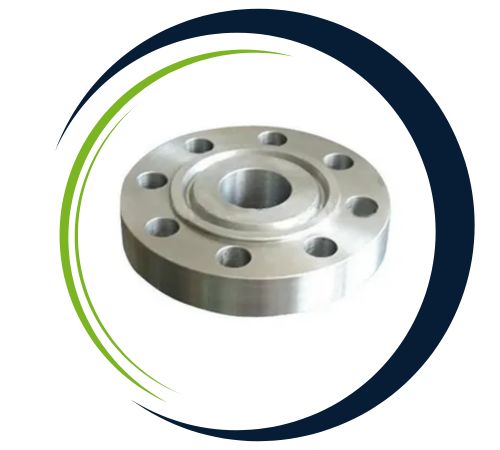

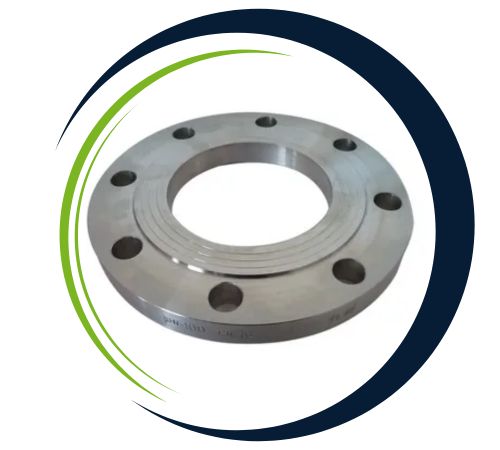

Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Grades : S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61

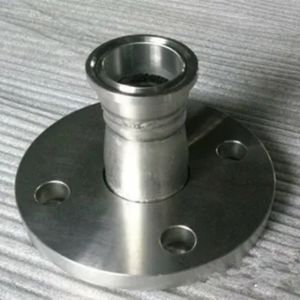

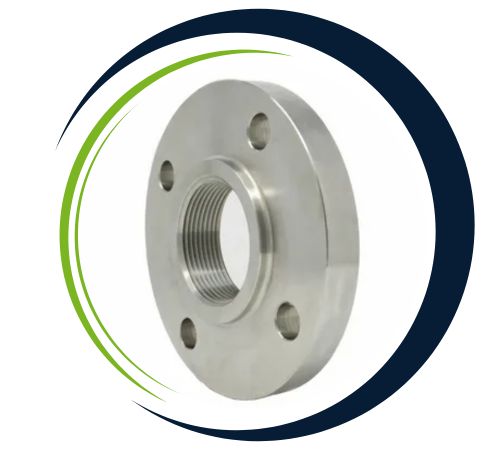

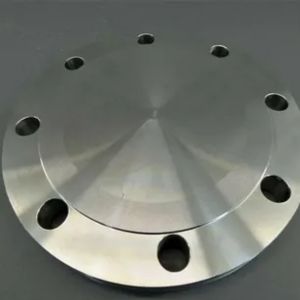

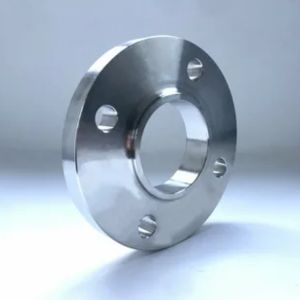

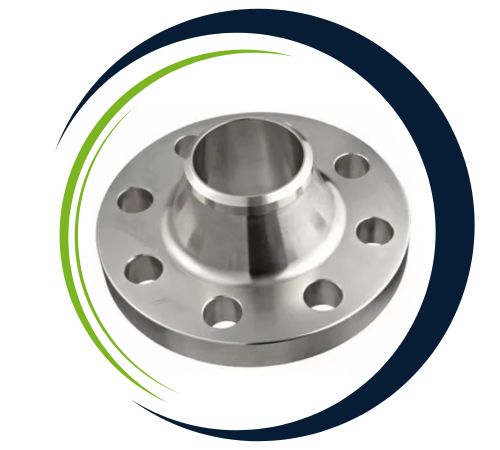

Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of Super Duplex Steel S32750 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32750 | 7.8 | 0.281 | 1350 | 2460 |
**Super Duplex Steel S32750 Flanges** are widely utilized in scenarios that demand exceptional mechanical properties and corrosion resistance. They are perfect for offshore oil and gas exploration, chemical processing facilities, heat exchangers, and desalination systems. In the marine and shipbuilding industries, these flanges ensure reliable performance when exposed to seawater. They are also used in pulp and paper mills, water treatment plants, and power generation units. Their ability to endure high pressure, temperature variations, and corrosive substances makes them a go-to option for critical piping connections and high-performance fluid systems.
| Nom. Pipe Size | O | T | R | X | No./Dia. of Holes | Bolt Circle Dia. | L2 | H | B2 | L | B | r | L3 | B3 | D |
| 1/2 | 3.5 | 0.44 | 1.38 | 1.19 | 4-0.62 | 2.38 | 1.88 | 0.84 | 0.62 | 0.62 | 0.88 | 0.12 | 0.62 | 0.9 | 0.38 |
| 3/4 | 3.88 | 0.5 | 1.69 | 1.5 | 4-0.62 | 2.75 | 2.06 | 1.05 | 0.82 | 0.62 | 1.09 | 0.12 | 0.62 | 1.11 | 0.44 |
| 1 | 4.25 | 0.56 | 2 | 1.94 | 4-0.62 | 3.12 | 2.19 | 1.32 | 1.05 | 0.69 | 1.36 | 0.12 | 0.69 | 1.38 | 0.5 |
| 1-1/4 | 4.62 | 0.62 | 2.5 | 2.31 | 4-0.62 | 3.5 | 2.25 | 1.66 | 1.38 | 0.81 | 1.7 | 0.19 | 0.81 | 1.72 | 0.56 |
| 1-1/2 | 5 | 0.68 | 2.88 | 2.56 | 4-0.62 | 3.88 | 2.44 | 1.9 | 1.61 | 0.88 | 1.95 | 0.25 | 0.88 | 1.97 | 0.62 |
| 2 | 6 | 0.75 | 3.62 | 3.06 | 4-0.75 | 4.75 | 2.5 | 2.38 | 2.07 | 1 | 2.44 | 0.31 | 1 | 2.46 | 0.69 |
| 2-1/2 | 7 | 0.88 | 4.12 | 3.56 | 4-0.75 | 5.5 | 2.75 | 2.88 | 2.47 | 1.12 | 2.94 | 0.31 | 1.12 | 2.97 | 0.75 |
| 3 | 7.5 | 0.94 | 5 | 4.25 | 4-0.75 | 6 | 2.75 | 3.5 | 3.07 | 1.19 | 3.57 | 0.38 | 1.19 | 3.6 | 0.81 |
| 3-1/2 | 8.5 | 0.94 | 5.5 | 4.81 | 8-0.75 | 7 | 2.81 | 4 | 3.55 | 1.25 | 4.07 | 0.38 | 1.25 | 4.1 | 0.88 |
| 4 | 9 | 0.94 | 6.19 | 5.31 | 8-0.75 | 7.5 | 3 | 4.5 | 4.03 | 1.31 | 4.57 | 0.44 | 1.31 | 4.6 | 0.94 |
| 5 | 10 | 0.94 | 7.31 | 6.44 | 8-0.88 | 8.5 | 3.5 | 5.56 | 5.05 | 1.44 | 5.66 | 0.44 | 1.44 | 5.69 | 0.94 |
| 6 | 11 | 1 | 8.5 | 7.56 | 8-0.88 | 9.5 | 3.5 | 6.63 | 6.07 | 1.56 | 6.72 | 0.5 | 1.56 | 6.75 | 1.06 |
| 8 | 13.5 | 1.12 | 10.62 | 9.69 | 8-0.88 | 11.75 | 4 | 8.63 | 7.98 | 1.75 | 8.72 | 0.5 | 1.75 | 8.75 | 1.25 |
| 10 | 16 | 1.19 | 12.75 | 12 | 12-1.00 | 14.25 | 4 | 10.75 | 10.02 | 1.94 | 10.88 | 0.5 | 1.94 | 10.92 | 1.31 |
| 12 | 19 | 1.25 | 15 | 14.38 | 12-1.00 | 17 | 4.5 | 12.75 | 12 | 2.19 | 12.88 | 0.5 | 2.19 | 12.92 | 1.56 |
| 14 | 21 | 1.38 | 16.25 | 15.75 | 12-1.12 | 18.75 | 5 | 14 | 13.25 | 2.25 | 14.14 | 0.5 | 3.12 | 14.18 | 1.63 |
| 16 | 23.5 | 1.44 | 18.5 | 18 | 16-1.12 | 21.25 | 5 | 16 | 15.25 | 2.5 | 16.16 | 0.5 | 3.44 | 16.19 | 1.75 |
| 18 | 25 | 1.56 | 21 | 19.88 | 16-1.25 | 22.75 | 5.5 | 18 | 17.25 | 2.69 | 18.18 | 0.5 | 3.81 | 18.2 | 1.94 |
| 20 | 27.5 | 1.69 | 23 | 22 | 20-1.25 | 25 | 5.69 | 20 | 19.25 | 2.88 | 20.2 | 0.5 | 4.06 | 20.25 | 2.13 |
| 22 | 29.5 | 1.81 | 25.25 | 24.25 | 20-1.38 | 27.25 | 5.88 | 22 | 21.25 | 3.13 | 22.22 | 0.5 | 4.25 | 22.25 | 2.38 |
| 24 | 32 | 1.88 | 27.25 | 26.12 | 20-1.38 | 29.5 | 6 | 24 | 23.25 | 3.25 | 24.25 | 0.5 | 4.38 | 24.25 | 2.5 |
Yes, we offer custom sizes for Super Duplex Steel S32750 Flanges to meet specific project needs. Our team atGugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
