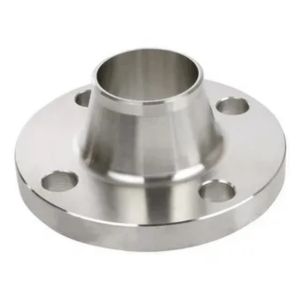

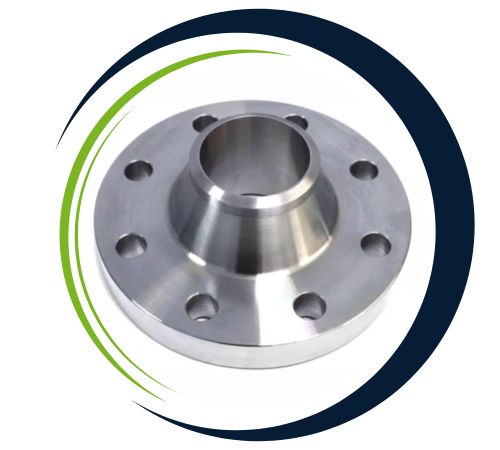

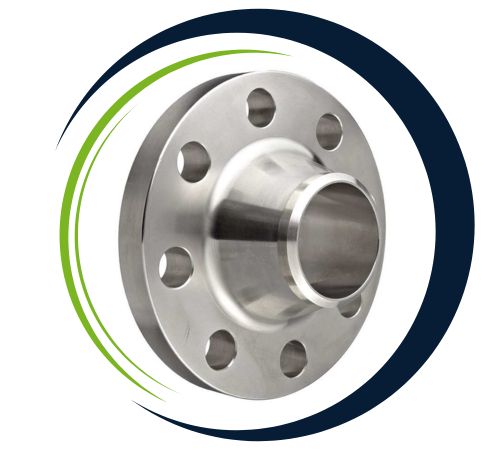

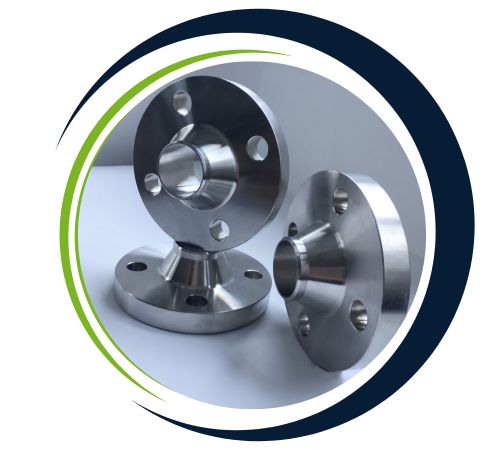

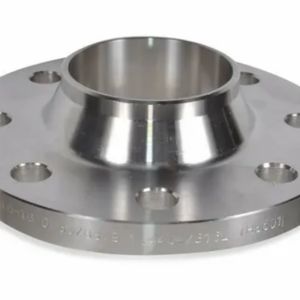

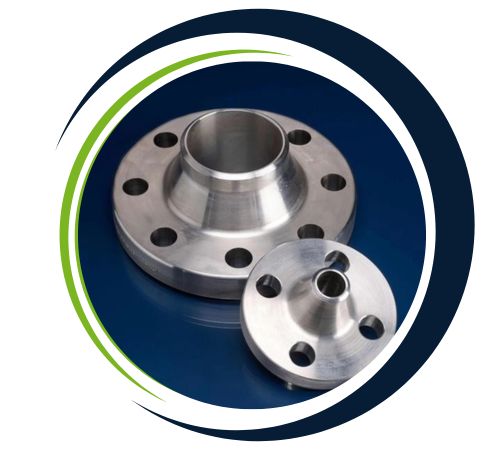

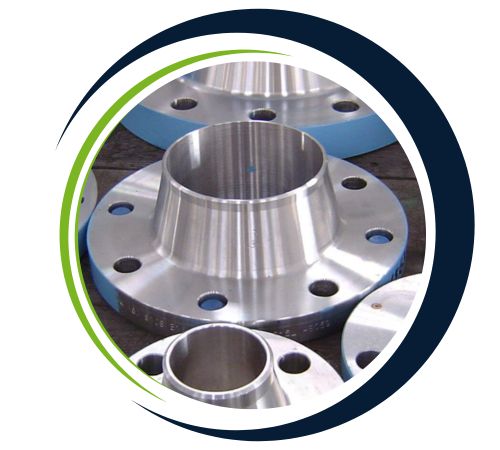

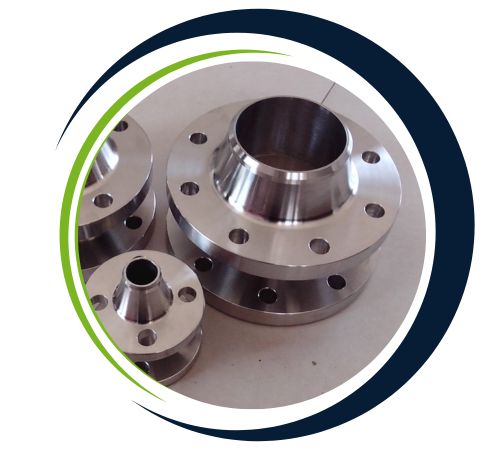

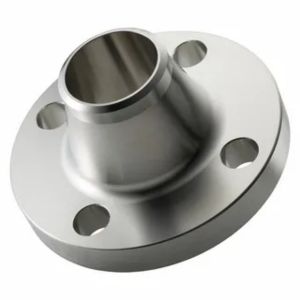

Gugsa Flanges stands out as a top manufacturer and supplier based in Addis Ababa, Ethiopia, offering high-quality Super Duplex Steel Weldneck Flanges that are perfect for high-pressure and high-temperature piping systems. These flanges come with a long tapered hub, which not only ensures excellent stress distribution but also creates strong welded connections, resulting in leak-proof and durable joints. At Gugsa Flanges, there’s a strong focus on precision manufacturing, rigorous quality control, and compliance with international standards. This commitment results in Super Duplex Steel Weldneck Flanges that boast exceptional corrosion resistance, impressive mechanical strength, and long-lasting durability, making them a great choice for critical applications in the oil and gas, petrochemical, chemical processing, and marine sectors.
Made from super duplex stainless steel grades like S32750 and S32760, these flanges provide outstanding corrosion resistance, especially in chloride-rich and harsh chemical environments. They are known for their superior mechanical properties, which include high tensile and yield strength, excellent fatigue resistance, and stability even under extreme temperatures and pressures. The welded neck design allows for smooth stress transitions and reliable structural integrity, while the duplex microstructure of the material helps resist pitting, crevice corrosion, and stress corrosion cracking, ensuring they remain reliable over the long haul.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSuper Duplex Steel S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, S32750 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSuper Duplex Steel SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSuper Duplex Steel SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSuper Duplex Steel SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM A182 Super Duplex Steel S32760 Super Duplex Steel Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Super Duplex Steel S32750, S32950, S32760, F52, F53, F55, F52 |
Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of Super Duplex Steel weldneck flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Super Duplex Steel Weldneck Flanges find widespread use in industries where strength, corrosion resistance, and durability are of prime concern. Some of the typical uses include the oil and gas industry, offshore platforms, chemical processing industries, and power generation. These flanges are most suitable to be used in environments that experience aggressive media, high temperatures, and pressure and thus are perfect for subsea pipelines, heat exchangers, and pressure vessels. Its improved crevice corrosion, stress corrosion cracking, and pitting resistance makes them the best choice for harsh environments. Super Duplex Steel Weldneck Flanges provide a strong and safe union under aggressive industrial environments, enhancing the overall system performance and safety.
| ASME/ANSI B 16.5 | Welding Neck Flange |
| PRESSURE CLASS | 150, 300, 400, S32750, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, S32750, 900 |
| ASME/ANSI B 16.36 | Welding Neck Flange |
| PRESSURE CLASS | 300, 400, S32750, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, S32750, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Super Duplex Steel Weldneck flanges to meet specific project needs. Our team atGugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.
Super Duplex Steel Weldneck Flanges are widely utilized in industries that demand strong, corrosion-resistant, and high-performance flange connections. They’re perfect for oil and gas pipelines, offshore and marine applications, chemical processing plants, and petrochemical facilities. These flanges are also suitable for high-pressure steam lines, heat exchangers, reactors, and other critical process equipment. Moreover, they find applications in desalination plants, water treatment facilities, and heavy industrial systems where safety, durability, and corrosion resistance are paramount. Their robust design guarantees reliable, leak-proof connections even in the most demanding environments.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
