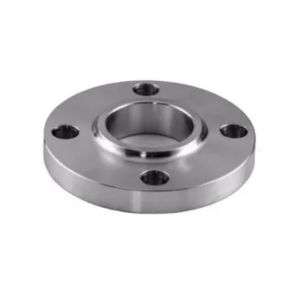

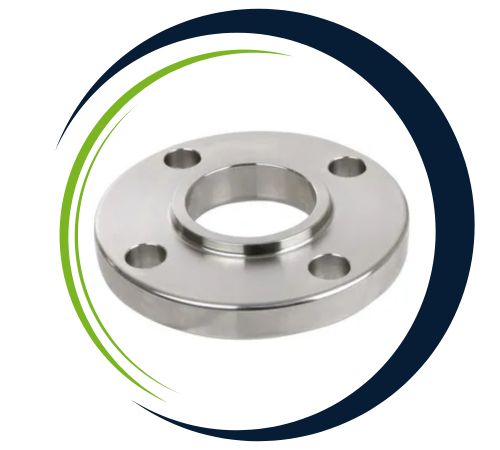

Gugsa Flanges is a well-respected manufacturer and supplier of Titanium Flat Flanges based in Addis Ababa, Ethiopia. They’ve built a solid reputation for providing precision-engineered flange solutions that adhere to international quality standards. With state-of-the-art manufacturing facilities and a dedicated team of skilled professionals, Gugsa Flanges delivers durable, corrosion-resistant, and high-performance titanium flanges that cater to a wide range of industrial applications. The company prioritizes innovation, reliability, and customer satisfaction, ensuring that every product meets the unique needs of clients in industries like chemical processing, aerospace, marine, and oil and gas. Gugsa Flanges truly represents excellence in Ethiopia’s industrial landscape.
The flat flanges are usually manufactured using high-quality titanium alloys including Grade 2 or Grade 5. Which has fantastic corrosion resistance and strength the presence of up to 99% titanium in this alloy. To which aluminium and vanadium additions enhance its longevity. Mechanically, titanium flat flanges have a very high tensile strength (Grade 5 up to 950 MPa) and exceptional fatigue life. The primary strengths are light weight construction, superior corrosion resistance to chemicals in sea water and high temperature and superior endurance in aggressive environments. Such characteristics make the flat titanium flanges perfectly suited for chemical processing industries, oil and gas industries, and marine uses.
| Product Name | Titanium Flat Flanges |
|---|---|
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) |
| Class / Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standards / Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, BS, GOST, MSS SP-44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605 |
| Titanium Flat Face Flanges / Connection Type | Flat Face Flange (FF), Raised Face Flange (RF), Ring Joint Flange (RTJ), Lap Joint Flange, Male and Female Flange (M&F), Large and Small Tongue-and-Groove Flange (T&G) |
| Dimensions | ANSI B16.5, ANSI B16.47 Series A & B, ASA, API-605, MSS SP44, AWWA, Custom Drawings |
| Custom Design | As per your drawing | AS, BS, ANSI, DIN, JIS | Equal and Reducing Configurations |
| Material Test Certificates (MTC) | As per EN 10204 3.2 and EN 10204 3.1, Test Certificates certifying NACE MR0175, NACE MR0103 |
| Test Certificates | 100% Radiography Test Report, EN 10204/3.1B, Raw Materials Certificate, Third Party Inspection Report, etc |
| Tests | Hydrostatic testing machine, Direct-reading Spectrograph, UI trasonic flaw detector, X-ray detector, Magnetic particle detector |
| Equipment / Machines | Press machine, Pushing Machine, Bending machine, Sand-blasting machine, electric bevelling machine, etc. |
Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of Titanium Flat Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
The Titanium Flat Flanges produced by Gugsa Flanges in Addis Ababa are made from top-quality titanium alloys, mainly Grade 2 and Grade 5 (Ti-6Al-4V). These alloys are known for their remarkable corrosion resistance, impressive strength-to-weight ratio, and outstanding durability, even in extreme conditions. The flanges boast excellent tensile strength, ductility, and fatigue resistance, guaranteeing a long service life in challenging environments. Their lightweight nature and high melting point make them perfect for applications that require robust components capable of performing under high pressure and temperature.
| STANDARD | UNS | WERKSTOFF NR. |
| Titanium Gr 2 | R50400 | 3.7035 |
| Titanium Gr 5 | R56400 | 3.7165 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 1 | .08 Max | .03 Max | .18 Max | .015 Max | Bal | .20 Max |
| Titanium Grade 4 | .08 Max | .05 Max | .40 Max | .015 Max | Bal | .50 Max |
| Titanium Grade 7 | .08 Max | .03 Max | .25 Max | .015 Max | Bal | .30 Max |
| Titanium Grade 9 | .08 Max | .03 Max | .15 Max | .015 Max | – | .25 Max |
| Titanium Grade 12 | .08 Max | .03 Max | .25 Max | 0.15 Max | – | .30 Max |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 4.5 G/Cm3 | 1665 °C (3030 °F) | Psi – 39900 , MPa – 275 | Psi – 49900 , MPa – 344 | 20 % |
| 4.43 G/Cm3 | 1632 °C (2970 °F) | Psi – 128000 , MPa – 880 | Psi – 138000 , MPa – 950 | 14 % |
Yes, we offer custom sizes for Titanium Flat Flanges to meet specific project needs. Our team atGugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.
Gugsa Flanges’ Titanium Flat Flanges are widely utilized across various industries thanks to their exceptional strength, corrosion resistance, and lightweight characteristics. They’re particularly suited for use in chemical processing plants, aerospace systems, marine engineering, oil and gas refineries, and power generation facilities. These flanges play a crucial role in connecting pipes, valves, and pumps in systems that manage corrosive fluids or operate under high pressure and temperature. Their ability to endure harsh environments makes them ideal for both offshore and onshore operations, ensuring safety, reliability, and longevity in industrial setups.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
