Gugsa Flanges, a prominent manufacturer and supplier located in Addis Ababa, Ethiopia, is well-known for crafting high-quality Titanium Gr 5 Flanges that adhere to international quality standards. These flanges are made from the robust and lightweight alloy Ti-6Al-4V, engineered to perform exceptionally well in challenging environments. With their impressive strength-to-weight ratio, resistance to corrosion, and long-lasting durability, Titanium Gr 5 Flanges are perfect for industries that demand reliability in extreme conditions. Gugsa Flanges prides itself on precision engineering, rigorous quality control, and consistent performance, making their Titanium Gr 5 Flanges a top choice for critical industrial applications.
The composition of Titanium Gr 5 Flanges includes roughly 90% titanium, 6% aluminum, and 4% vanadium. This unique alloy blend boosts mechanical strength, fatigue resistance, and corrosion protection while keeping the structure lightweight. They showcase remarkable mechanical properties, featuring a tensile strength of about 895 MPa, yield strength of 828 MPa, and an elongation of around 10–15%. These attributes, along with outstanding heat resistance and oxidation stability up to 400°C, position Titanium Gr 5 as an exceptional material for high-performance applications.
| Standards | GOST Flange, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092, BS, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, DIN, MSS S44, ISO70051, ANSI/ASME B16.5, ASME/ANSI B16.5/16.36/16.47A/16.47B, B16.47 Series A & B, B16.48, EN |
|---|---|
| Pressure Rating ANSI | Class 1500, Class 150, Class 900, Class 2500, Class 300, Class 600, |
| Pressure Calculation in DIN | 10Bar, 16Bar, 25Bar, 40Bar, 6Bar, / PN16, PN64, PN40, PN25, PN10, PN6 |
| JIS | 16 K, 20 K, 5K, 10 K, 40 K, 63 K, 30 K, |
| UNI | 10Bar 16Bar 6Bar 25Bar 40Bar |
| EN | 6Bar 25Bar 40Bar 10Bar 16Bar |

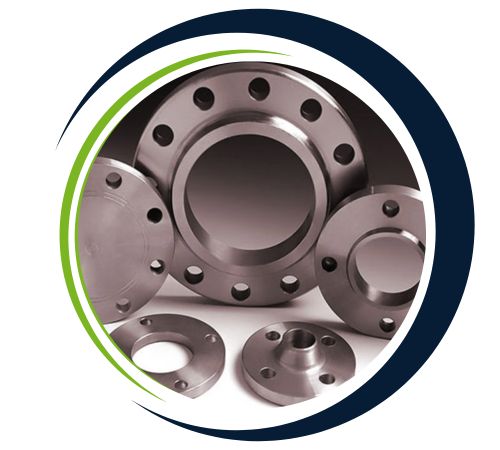

| Most common Types | Threaded / Screwed / Forged / Plate |
| Production technique |
|

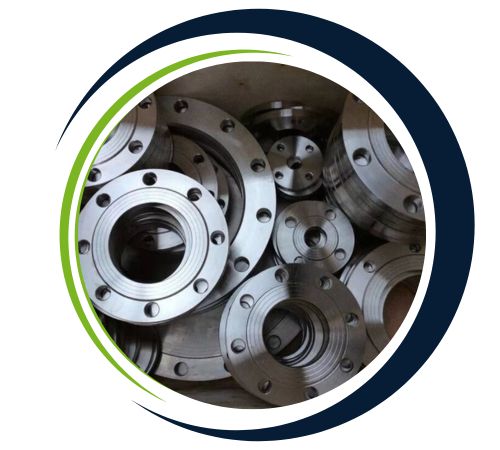

| Shapes and Types we produce | Large Male-Female (LMF), Ring Type Joint (RTJ), Flat Face (FF), Small Tongue, Small Male-Female (SMF),Raised Face (RF), Large Tongue & Groove, Groove, Lap-Joint Face (LJF) |
| Test | Direct-reading Spectrograph, Magnetic particle detector, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector |
| Equipment | Pushing Machine, Press machine, Bending machine, Sand-blasting machine, electric bevelling machine etc |

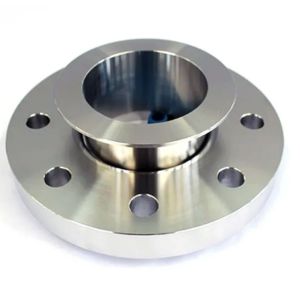

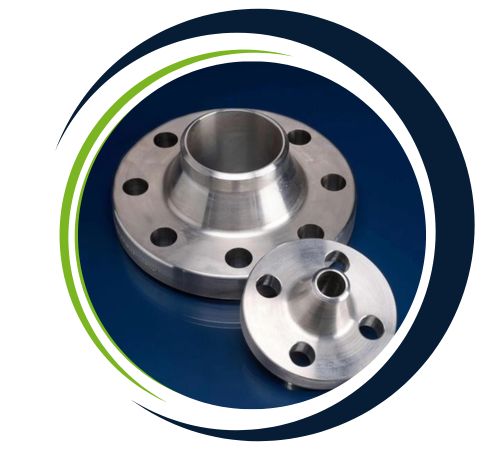

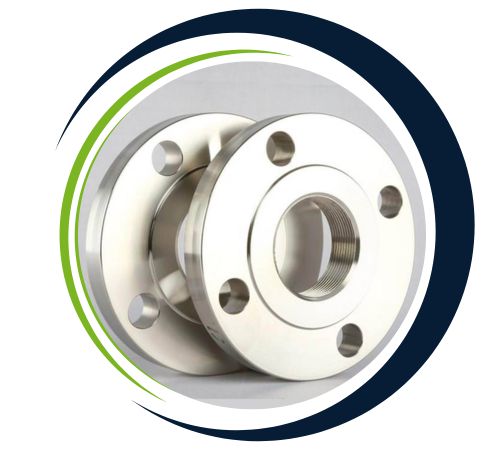

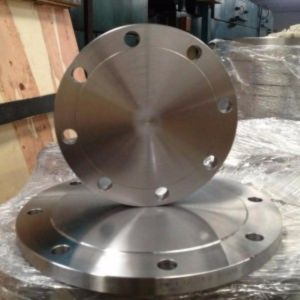

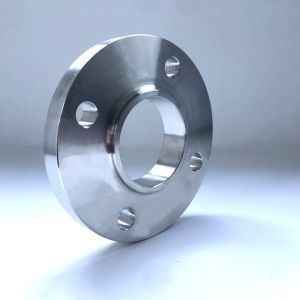

Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of Titanium Gr 5 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Titanium Gr 5 Flanges find extensive use across various industries, including aerospace, marine, chemical processing, oil and gas, and power generation. They are particularly effective for connecting pipelines and equipment in systems that face high temperatures, pressure, and corrosive substances. In the aerospace industry, they are utilized in hydraulic and fuel systems, while in marine settings, they effectively resist seawater corrosion. Their blend of strength, lightness, and chemical resistance also makes them ideal for medical devices, desalination plants, and heat exchangers, where performance and longevity are essential.
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | N56400 |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Yes, we offer custom sizes for Titanium Gr 5 Flanges to meet specific project needs. Our team at Gugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
